5″ Bollard Covers
5 inch Pipes have a 5 9/16″ Outer Diameter (OD).
5 inch Bollard Covers have about a 6″ inner diameter (ID) to fit the pipe.
5″ Dome Top Bollard Covers with 1/4″ Wall
For 5″ Pipes (5.563″ OD)
Specifications
Material: Low Density Polyethylene (LDPE)
Eco Friendly: Made from Recycled Plastic.
Cover Inner Diameter (ID): about 6″
Fits 5″ Pipes which have a 5.563″ Outer Diameter (OD)
LDPE Colors: Yellow, Orange, Red, Deep Blue, Vivid Blue, Forest Green, White, Light Gray, Dark Gray, Urbane Bronze, Brown, Black, Light Granite, Dark Granite and Custom
Max Pipe Height: 60″
Cut to Any Height Free. Just give us your pipe height.
Custom Colors available for a one-time charge
Granite Options extra
Installation Tape Included
Dome Top Bollard Covers
Red, White and Blue
Dome Top Bollard Covers
Red

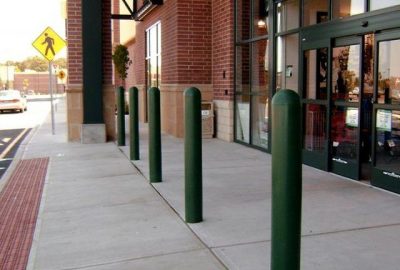

Dome Top Bollard Covers
Forest Green
Bollard Pipe and Cover Size Chart
<- On Small Screens, Scroll Chart Sideways ->
ID: Inner Diameter
OD: Outer Diameter
| Bollard Pipe Links | Pipe ID 40/80 | Pipe OD | Pipe Circumference | Bollard Cover Links | Cover ID |
| 4 inch SCH 40 or 80 | 4.026"/3.826" | 4 1/2" | 14 1/8″ | 4 inch | ~5" |
| 5 inch SCH 40 or 80 | 5.047"/4.913" | 5 9/16" | 17 15/32″ | 5 inch | ~6" |
| 6 inch SCH 40 or 80 | 6.065"/5.761" | 6 5/8" | 20 13/16″ | 6 inch | ~7" |
| 8 inch SCH 40 or 80 | 7.981"/7.625" | 8 5/8" | 27 3/32″ | 8 inch | ~9" |
| 10 inch SCH 40 | 10.02" | 10 3/4" | 33 25/32″ | 10 inch | ~11" |
| 12 inch Standard | 12.0" | 12 3/4" | 40 1/16″ | 12 inch | ~13" |
Bollard Cover Color Reference
On the chart, to the right of each color it shows the Pantone Color Code. You can use that color code to get a larger swatch or to compare colors to your branding colors.
Specifying the Pantone color can help make sure you are getting the right color. Don't rely on the color names, like "Deep Blue" or "Vivid Blue". Those are made up names. Instead, specify "Blue 285C" or "285 Blue".
